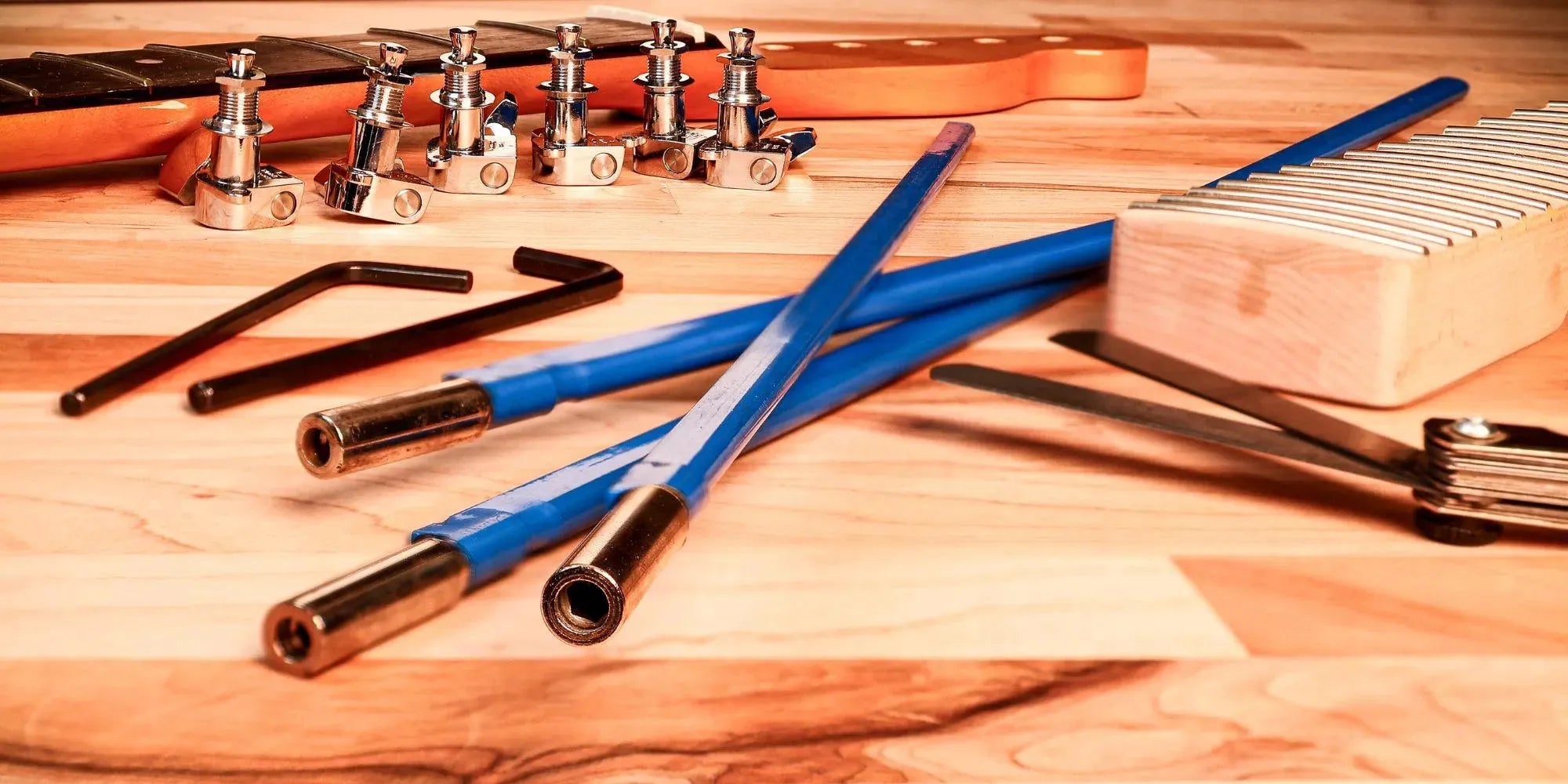

Truss Rods Explained
What they do, how they work, and why you shouldn’t fear them
A guitar neck looks simple from the outside: wood, frets, fingerboard, maybe some block inlays if it’s feeling fancy. But inside most modern guitar and bass necks is one of the most important parts of the entire instrument: the truss rod. The truss rod is the adjustable metal rod inside the neck that helps control neck relief. Relief is the slight forward curve that lets your strings vibrate cleanly. It is not there to fix every setup problem, and it is definitely not something to be afraid of. It is a practical, adjustable tool that helps your neck do its job. For players looking for a replacement neck, the truss rod can sometimes feel intimidating. What if I adjust it wrong? What if the neck moves? What even is “relief”, anyway?
Good news: once you understand what the truss rod actually does, the mystery disappears pretty quickly. With a little knowledge, a little patience, and a healthy respect for small adjustments, you can approach your next neck swap or setup with confidence. In other words: Mod your heart out.
A Short History of the Truss Rod
Early guitars did not always need truss rods. Many acoustic instruments used gut strings, which had much lower tension than modern steel strings. But as steel strings became more common, necks had to deal with a lot more string pull. A tuned set of guitar strings can place well over 100 pounds of tension on a neck. Bass strings can pull even harder. Over time, that tension wants to bend the neck forward. By the early 20th century, builders needed a better way to keep necks stable. Reinforcement methods like ebony strips, steel bars, and other internal supports were used, but the big breakthrough was the adjustable truss rod. Gibson helped popularize the adjustable truss rod in the 1920s (invented by Thaddeus “Ted” McHugh, a Gibson employee who filed his patent in 1921), and the idea became one of the most important developments in modern fretted instrument design.
That simple adjustable rod gave players and repair techs a way to fine-tune the neck instead of just hoping the wood behaved. Wood is a wonderful material, but it also likes to move and bend under tension. It can have a mind of its own. The truss rod exists because guitar necks live in the real world: string tension, humidity, temperature changes, seasonal movement, different tunings, different string gauges, and years of playing all affect the curvature of the neck over time.
What Does a Truss Rod Actually Do?
A truss rod helps control the amount of forward or backward curve in the neck. It does not primarily adjust string height. It does not replace proper nut work, bridge adjustment, fretwork, or saddle height. But it does affect how the strings interact with the frets, especially in the middle area of the neck. Think of the strings as pulling the neck forward. The truss rod provides adjustable counter-tension inside the neck.
The goal is balance.
When the neck has the right amount of relief, the strings have enough room to vibrate without rattling against the frets, while still keeping the instrument comfortable to play.
What Is Neck Relief?
Relief is the small amount of forward bow intentionally left in a guitar or bass neck. If you sight down the edge of a properly adjusted neck, it usually should not be perfectly straight under string tension. It often needs a very slight curve. That curve gives the vibrating string a little breathing room. A guitar string does not move in a perfectly flat line when you pluck it. It vibrates in a three-dimensional, oval-like pattern. The middle of the string’s speaking length moves the most, while the ends of the string move the least. That means the string needs room to move, especially around the middle portion of the neck. Relief creates that space. Too little relief, and the string may buzz against the frets.
Too much relief, and the guitar may feel stiff, high, and harder to play. The sweet spot is usually a shallow, controlled curve — not a ski jump, not a banana, and not a ruler-straight neck at all costs.
Concave vs. Convex: Understanding Neck Bow
Concave Bow / Forward Bow
This is when the neck curves slightly forward, creating a shallow valley between the string and the frets. This is the type of curve we are usually talking about when we say relief. A little bit of concave bow is normal and often desirable. It gives the string space to vibrate. Too much concave bow, though, can make the action feel high, especially in the middle of the neck. The guitar may feel harder to play, even if the bridge saddles are set reasonably low.
Convex Bow / Back Bow
This is when the neck curves backward, creating more of a hump in the middle of the neck. Back-bow is usually not what you want. When the middle of the neck rises toward the strings, the strings do not have enough room to vibrate. This can cause buzzing, dead notes, choking, and general setup misery. A back-bowed neck can make even a good guitar feel broken. Thankfully, this is exactly the kind of thing an adjustable truss rod is designed to help manage.
Why Strings Need Breathing Room
When you pluck a string, it does not just move up and down like a tiny jump rope. It vibrates in an oval-like pattern, moving through space as it rings. The harder you pick, the wider that vibration becomes. That is why a player with a heavy attack may need a little more relief or slightly higher action than someone with a very light touch. It is also why a guitar that plays perfectly for one person may buzz for another. Relief is not about making the neck look curved. It is about giving the string a clear path to resonate. A great setup feels like the guitar is cooperating with your hands. The strings ring clearly, the action feels comfortable, and the neck has just enough relief to let everything breathe.
Single-Action vs. Dual-Action Truss Rods
There are two main types of truss rods: single-action and dual-action. They both exist to control neck relief, but they work a little differently.
Single-Action Truss Rods
A single-action truss rod works in one main direction. As you tighten it, the rod pushes against the pull of the strings and helps reduce forward bow. In other words, it can straighten a neck that has too much relief. When you loosen a single-action rod, you are reducing the rod’s counter-tension and allowing the strings to pull the neck forward again. A traditional single-action rod is simple, effective, and has been used successfully on countless instruments for decades. The key thing to understand is that a single-action rod does not actively force the neck forward. It mainly resists string tension. The strings do the pulling; the rod does the correcting.
Dual-Action Truss Rods
A dual-action truss rod, sometimes called a two-way truss rod, can adjust in both directions. It can help reduce too much forward bow, but it can also help correct a back-bowed neck by adding relief. That makes dual-action rods especially useful in modern replacement necks because they give the player or tech more adjustment range. If the neck needs help in either direction, the rod has a way to respond. Most dual-action rods have a neutral zone in the middle of their adjustment range. Turn one way, and the rod begins correcting the forward bow. Turn the other way, and it begins correcting back bow. Conceptually, it is like having a neck-stability tool that can push or pull as needed.
Which Type of Truss Rod Does My Mighty Mite Neck Have?
Mighty Mite replacement necks may use either a single-action or dual-action truss rod, depending on the model. The easiest way to check is to visit the product page for the specific neck you are interested in and click the “Specifications” tab. There, you will find the truss rod type listed along with the other important neck specs. That detail matters because single-action and dual-action rods adjust a little differently, but the basic concept is the same: the truss rod helps control the amount of relief in the neck so the guitar can be properly set up for your strings, tuning, and playing style. Whether your neck has a traditional single-action rod or a modern dual-action rod, the goal is not to fight the neck. The goal is to bring the neck into balance.
Why Truss Rod Adjustment Comes First in a Setup
When setting up a guitar, the truss rod is usually the first major adjustment to check. That is because neck relief affects everything that comes after it. If the neck has too much forward bow, the action may feel high, especially around the middle of the neck. You might be tempted to lower the bridge saddles, but that can create buzzing in other areas because the real issue is the neck curve. If the neck is too straight or back-bowed, the strings may buzz or choke out even if the bridge saddles are set correctly. Again, saddle height alone will not solve the actual problem.
This is why relief comes first.
A proper setup generally follows a sequence: neck relief first, then string height/action, then intonation, then final playability checks. The truss rod establishes the foundation. Once the neck has the correct amount of relief, the bridge saddles can be adjusted more accurately, and intonation can be set more reliably. Trying to set action or intonation before checking relief is like trying to level a table before making sure the floor underneath it is stable. You might get close, but you are working against yourself.
Why You Should Adjust Relief with Fresh Strings
A proper setup should be done with the strings you actually plan to use. Old strings can be stretched out, dirty, uneven, dented, or worn flat where they contact the frets. They may not vibrate consistently, tune cleanly, or intonate accurately. That can make setup work misleading. Fresh strings give you a better baseline. String gauge also matters. A set of 9s, 10s, 11s, or bass strings will each place different amounts of tension on the neck. Changing your string gauge can change the amount of relief because the neck is reacting to a different amount of pull. The same is true for tuning. Standard tuning, half-step down, drop tunings, and alternate tunings can all change string tension. So before making truss rod adjustments, install the strings you plan to use, stretch them, tune the guitar, and let the neck respond to that tension.
That way, you are adjusting the neck for the real conditions the guitar will live under.
Why the Guitar Should Be Tuned to Pitch
The truss rod and strings work together in a state of tension. The strings are pulling the neck forward. The truss rod is helping counteract that pull. If the guitar is not tuned to pitch, the amount of string tension on the neck is not accurate. That means the relief reading may not be accurate either. For example, if the strings are loose, the neck may look straighter than it will once the guitar is tuned. If you adjust the truss rod while the guitar is not under normal tension, you may end up chasing the setup once everything is tuned back up. The best practice is simple: tune the guitar to pitch, check the relief, make a small truss rod adjustment if needed, tune back to pitch, and check again.
That tune, check, adjust, retune, recheck process keeps you honest. It lets the neck, strings, and truss rod settle into the same working relationship they will have when the guitar is actually being played.
The Truss Rod is NOT the Way to Adjust Your Action
This is one of the most important setup concepts to understand. The truss rod affects action, but it is not the main action adjustment. String height is usually adjusted at the bridge saddles. Nut height matters too, especially in the first few frets. Fret condition matters. Neck angle matters. String gauge and tuning matter. The truss rod’s job is more specific: it controls the curve of the neck. A helpful way to think about it: relief gives the string room to vibrate; bridge saddles set the overall string height; the nut height then comes last as we try to get the string as close as possible to the fret without open string buzz; and properly leveled frets let the string travel cleanly across the neck.
A good setup is all of these things working together.
How to Think About Truss Rod Adjustments
A truss rod should be adjusted carefully, but not fearfully. Small adjustments are the move. A tiny turn can make a noticeable difference. Many setup adjustments are made in increments of about an eighth to a quarter turn at a time. After adjusting, tune the guitar back to pitch and check the neck again. The most common idea is: tightening the rod usually reduces relief; loosening the rod usually allows more relief. On a dual-action rod, there may be a neutral point before the rod begins working in the opposite direction. The important thing is not to force anything. If a truss rod feels stuck, maxed out, unusually tight, or like it does not want to move, stop and have a qualified tech look at it.
Confidence is good. Forcing metal parts inside a wood neck like you are opening a pickle jar is not.
How Relief Is Commonly Checked
A simple way to understand relief is to use the string itself as a straightedge. With the guitar tuned to pitch, fret or capo the first fret, then fret the string near where the neck meets the body. On many guitars, that means somewhere around the last fret or upper frets. Then look at the gap between the bottom of the string and the top of the frets around the middle of the neck, often around the 7th to 9th fret area. That little gap is the relief. Relief should usually be checked with the guitar in playing position — not lying flat on a table or workbench. Why? Because the neck responds to gravity. When the guitar is lying on its back, the weight of the neck and body can slightly change how the neck sits. That can affect your reading, especially when you are dealing with tiny measurements.
Unless you plan on playing your guitar flat on your lap like a lap-steel, check relief the way the guitar will actually be played. A common way to measure relief is with feeler gauges. Some experienced techs can get very close by feel and sight. Either way, the concept is the same: you are checking how much curve exists between two fretted points while the guitar is tuned, strung, and sitting in its real-world playing position. There is no single perfect number for every guitar. The right amount depends on the instrument, string gauge, tuning, fret condition, playing style, and personal preference. That is why setup is part measurement, part feel, and part listening.
Why This Matters for Replacement Necks
A replacement neck is not scary. It is adjustable. That is the whole point. When you install a new neck, it may need a setup. That does not mean something is wrong. It means the neck is being matched to your guitar, your strings, your tuning, and your playing style. A neck is a piece of wood under tension. It is supposed to be adjusted. The truss rod is there so you can dial it in. So if you are building a project guitar, upgrading a favorite instrument, or finally replacing that neck that has been fighting you for years, the truss rod should not be the thing that stops you. It is not a mystery rod. It is not a danger lever. It is not guitar wizardry sealed inside maple.
It is a setup tool.
And once you understand what it does, it becomes one more part of the process.
Final Thought: Don’t Fear the Rod
The truss rod is one of the reasons modern guitars are so playable, adjustable, and reliable. It helps balance string tension, control neck relief, and give your strings enough room to move. Whether your neck has a traditional single-action rod or a modern dual-action rod, the goal is the same: a comfortable, stable instrument that rings clearly and plays the way you want it to. So take your time. Make small adjustments. Learn what relief looks and feels like. And remember that every great-playing guitar has been adjusted to get there. The more you understand your instrument, the less intimidating it becomes.
Build it. Adjust it. Learn from it.
Mod your heart out.
