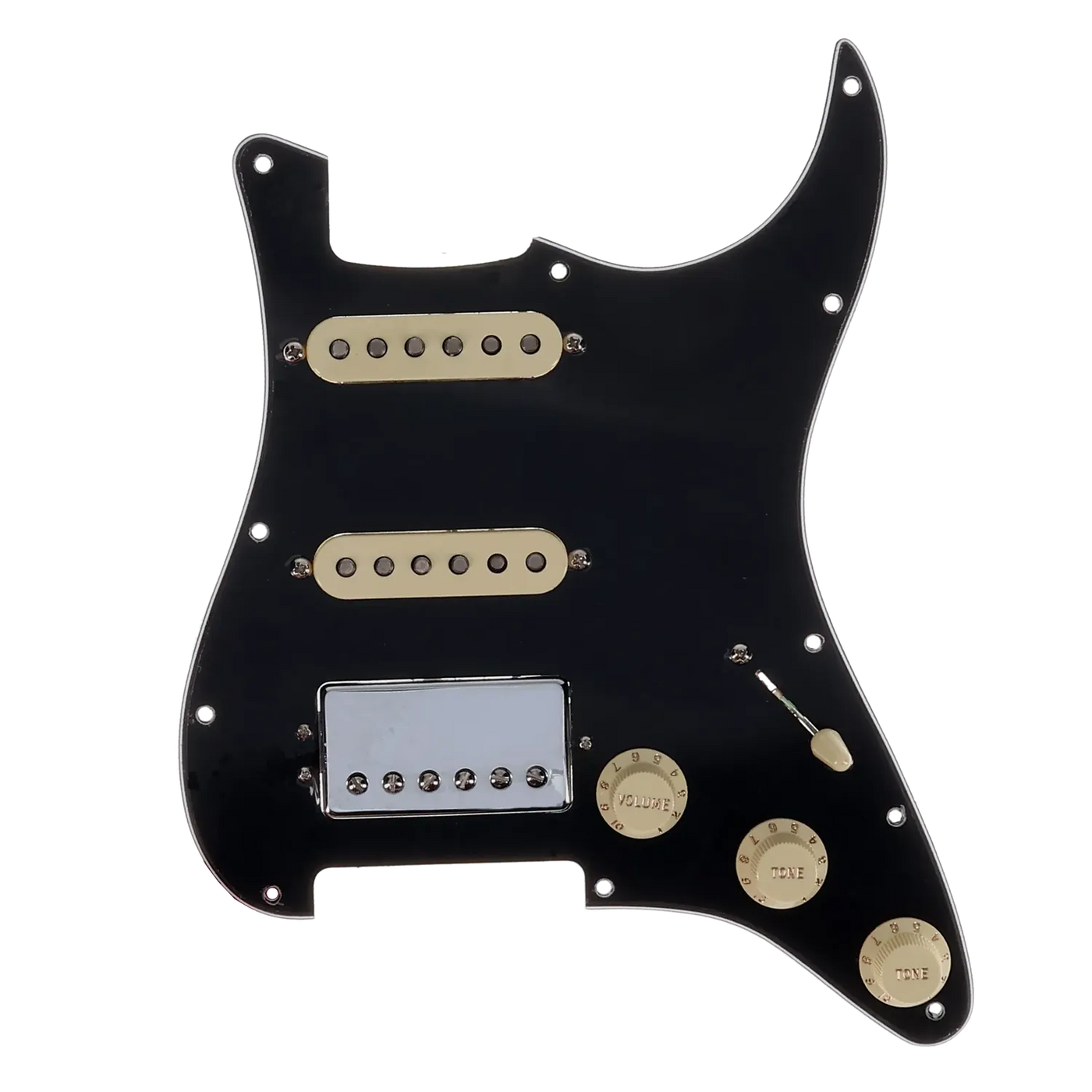

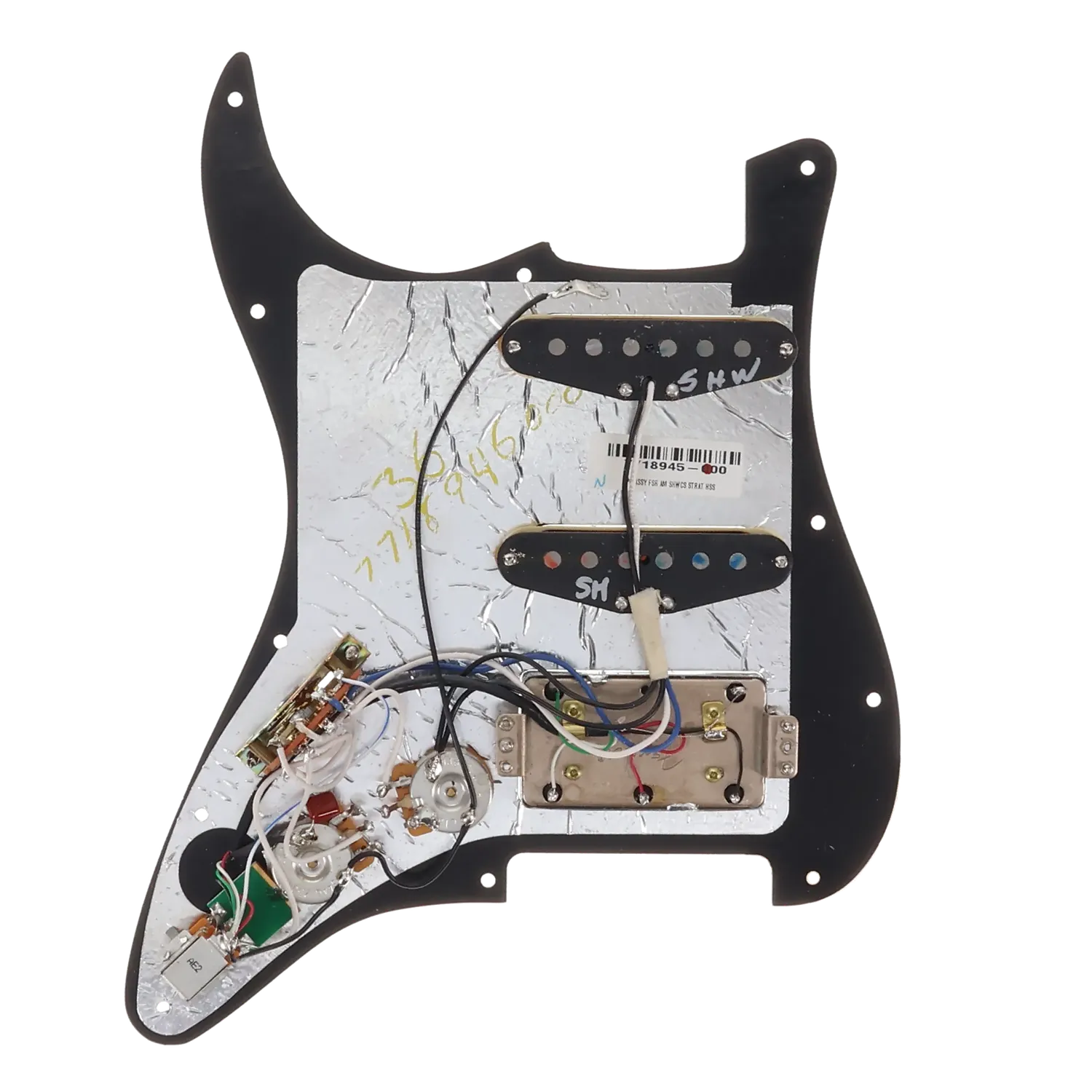

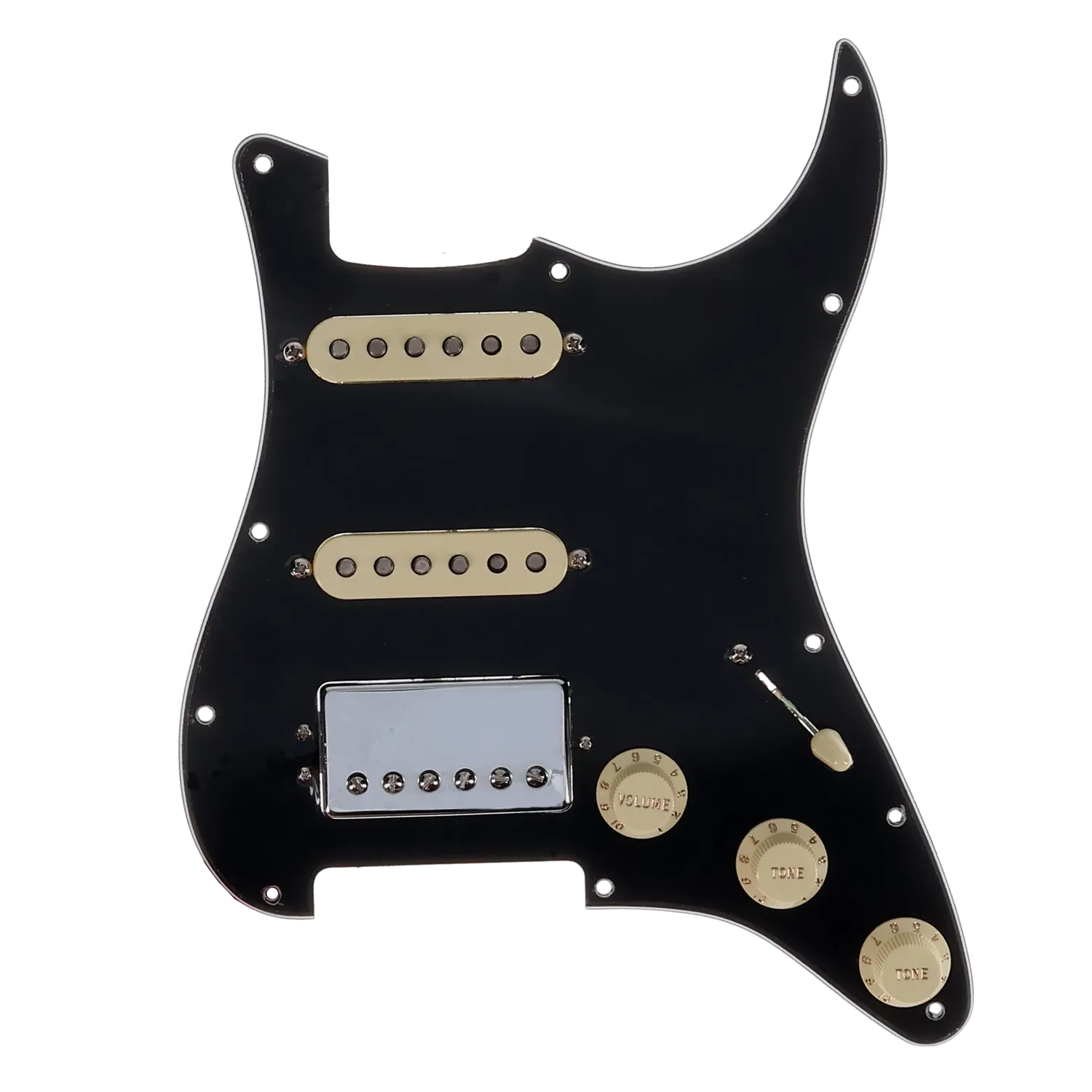

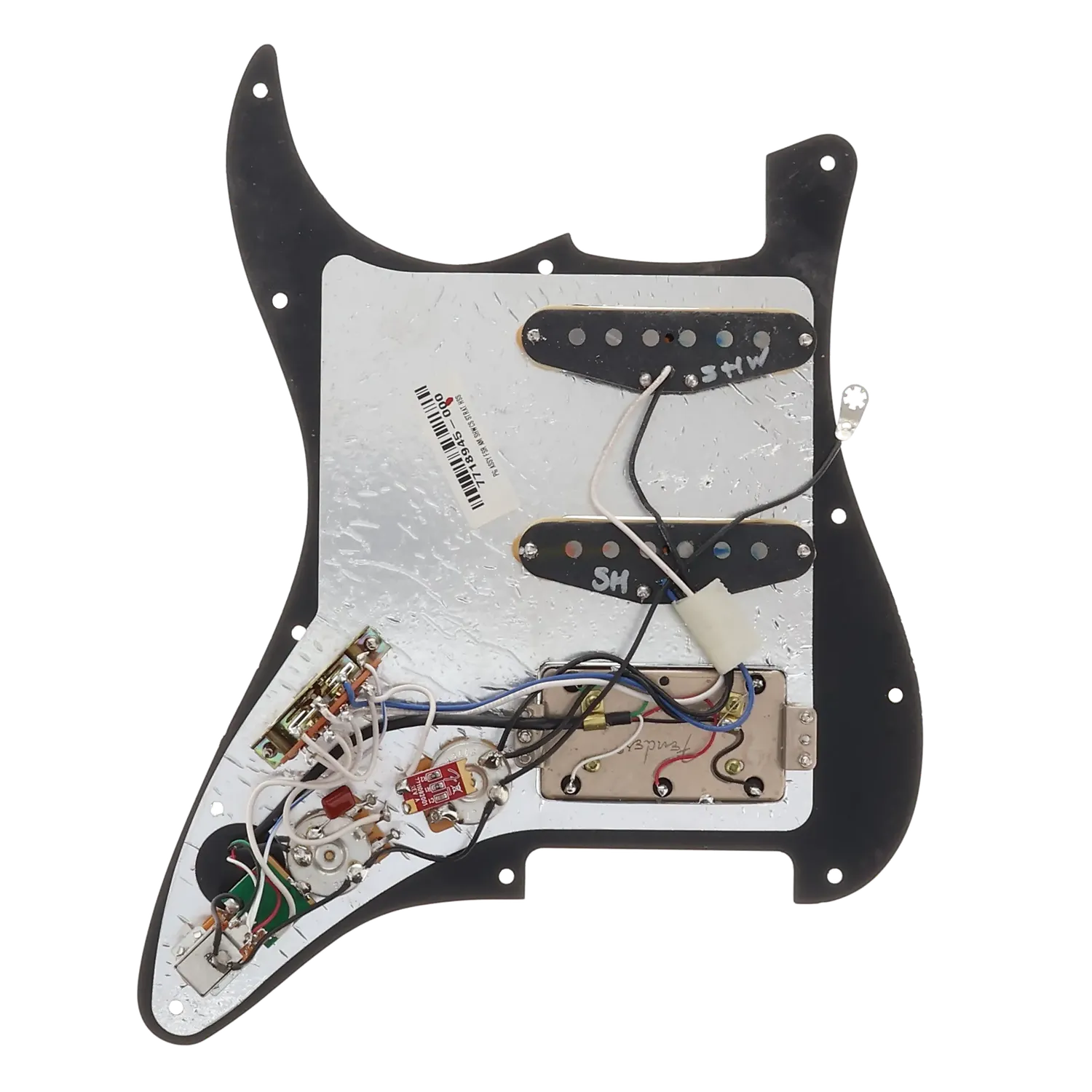

This pickguard takes the term "loaded" to a whole new level! This 3 ply black Strat guard features a medium hot Fender "Shawbucker" in the bridge, and two medium output single coils in the neck and middle position. We have your traditional master volume and 2 tone controls paired with a 5 way blade switch. On top of that, we have a treble bleed, grease bucket tone circuit on the rear tone control, as well as push/pull pot on the rear tone control for tapping the bridge humbucker pickup! Talk about some serious tonal versatility! Upgrade your strat with this killer reclaimed guard. Originally designed for Fender American Showcase Stratocaster HSS.
Type: Strat
Color/Finish: 3 ply Black w/ Cream single coils, knobs and switch tip. Chrome Humbucker.
Condition: Reclaimed
Configuration: H/S/S
Controls: x1 Volume (250k), x2 Tone (250k), 5 way blade switch
Switching: Pos 1: Bridge, Pos 2: Bridge & Middle, Pos 3: Middle, Pos 4: Middle & Neck, Pos 5: Neck
Tone Cap Value: 0.022uF
DCR: Bridge - 8k / Middle - 6.25k / Neck - 6k
Wire Type: Single Coils: 2 Conductor PVC, Humbucker: 4 Conductor
Active or Passive: Passive

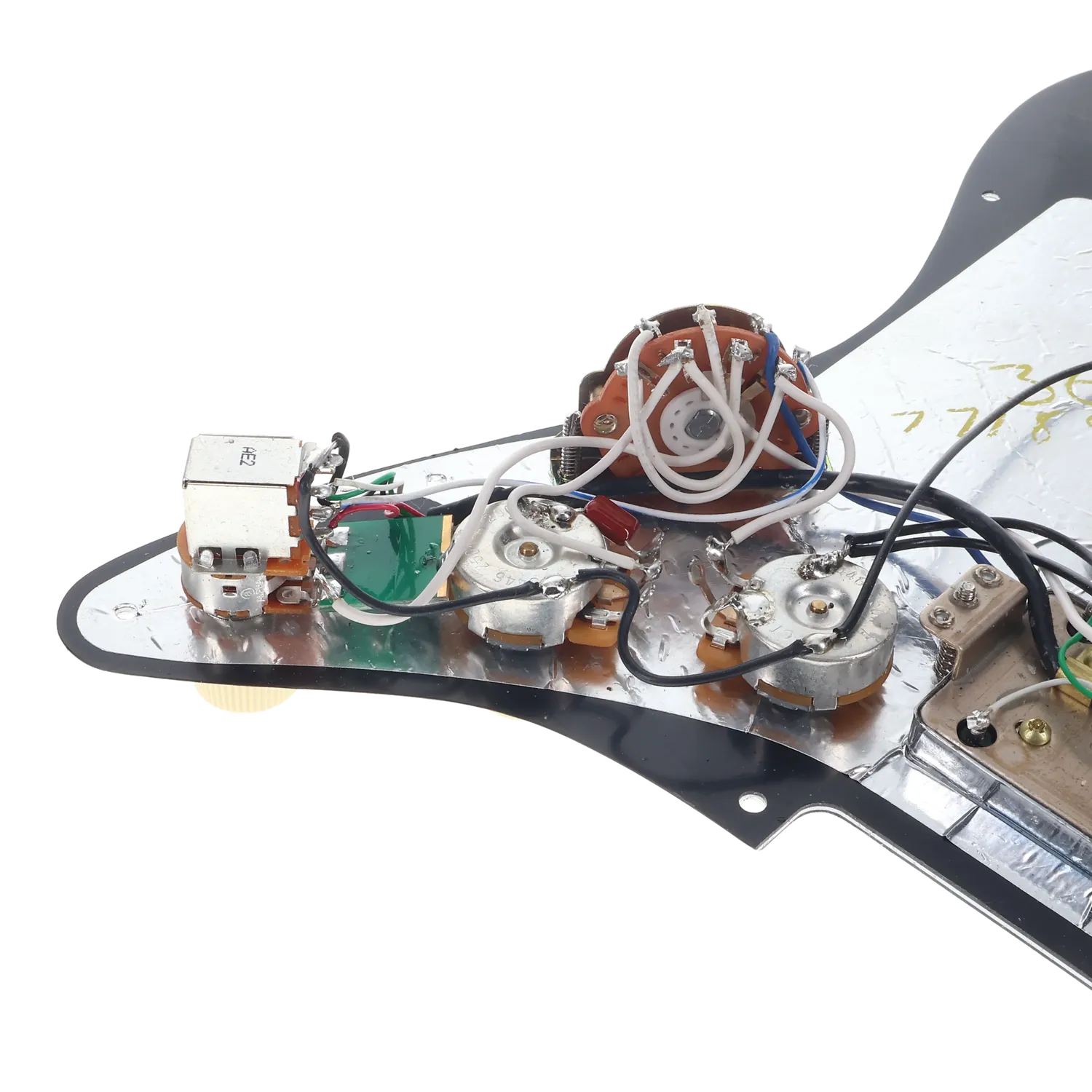

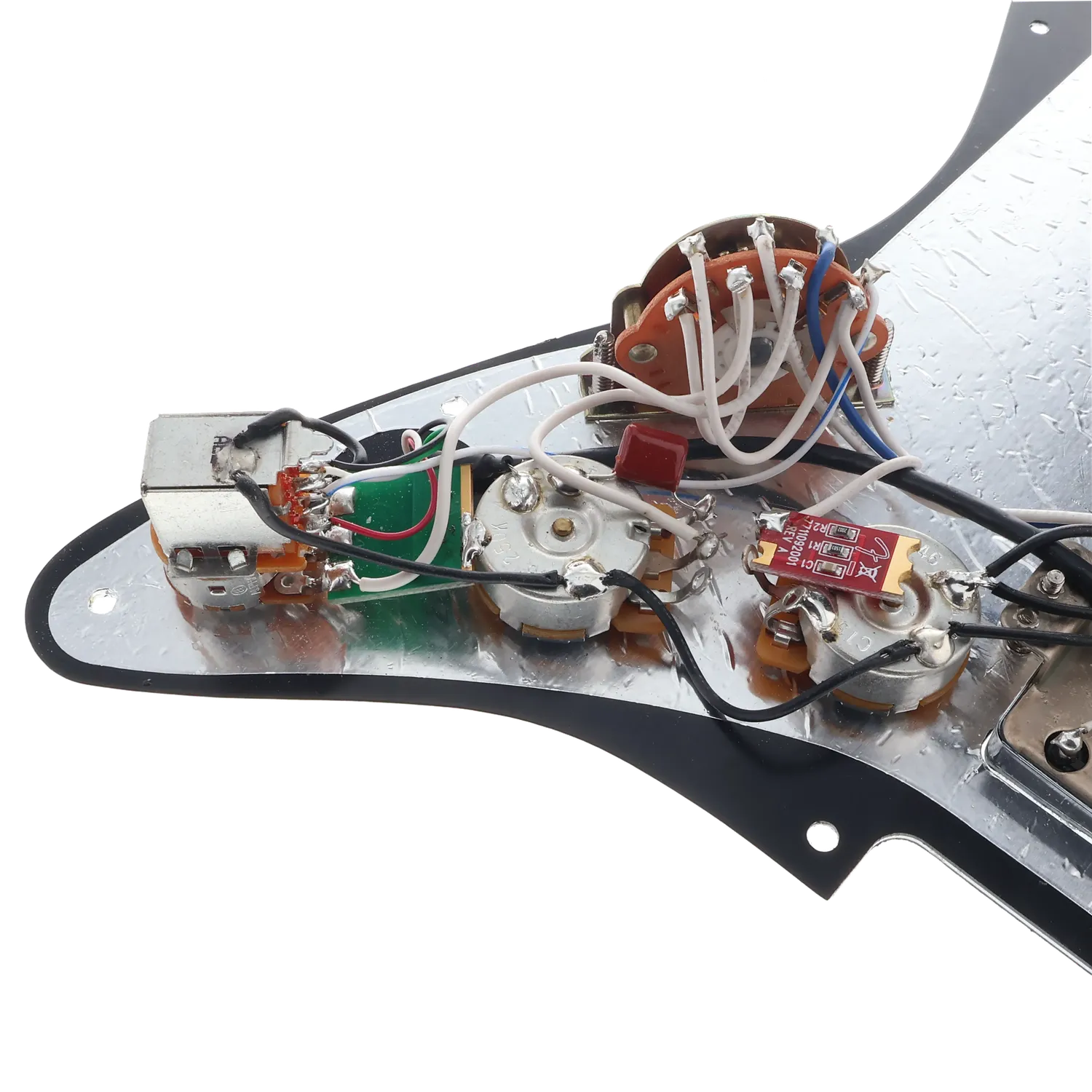

Special Electronics: Treble Bleed, Greasbucket tone circuit, and Push/Pull switch for tapping humbucker
