Vintage Telecaster styling meets modern intonation precision with this genuine Fender American Vintage Hot Rod Telecaster Bridge Assembly, sourced directly from Fender for our Reclaimed Parts collection.

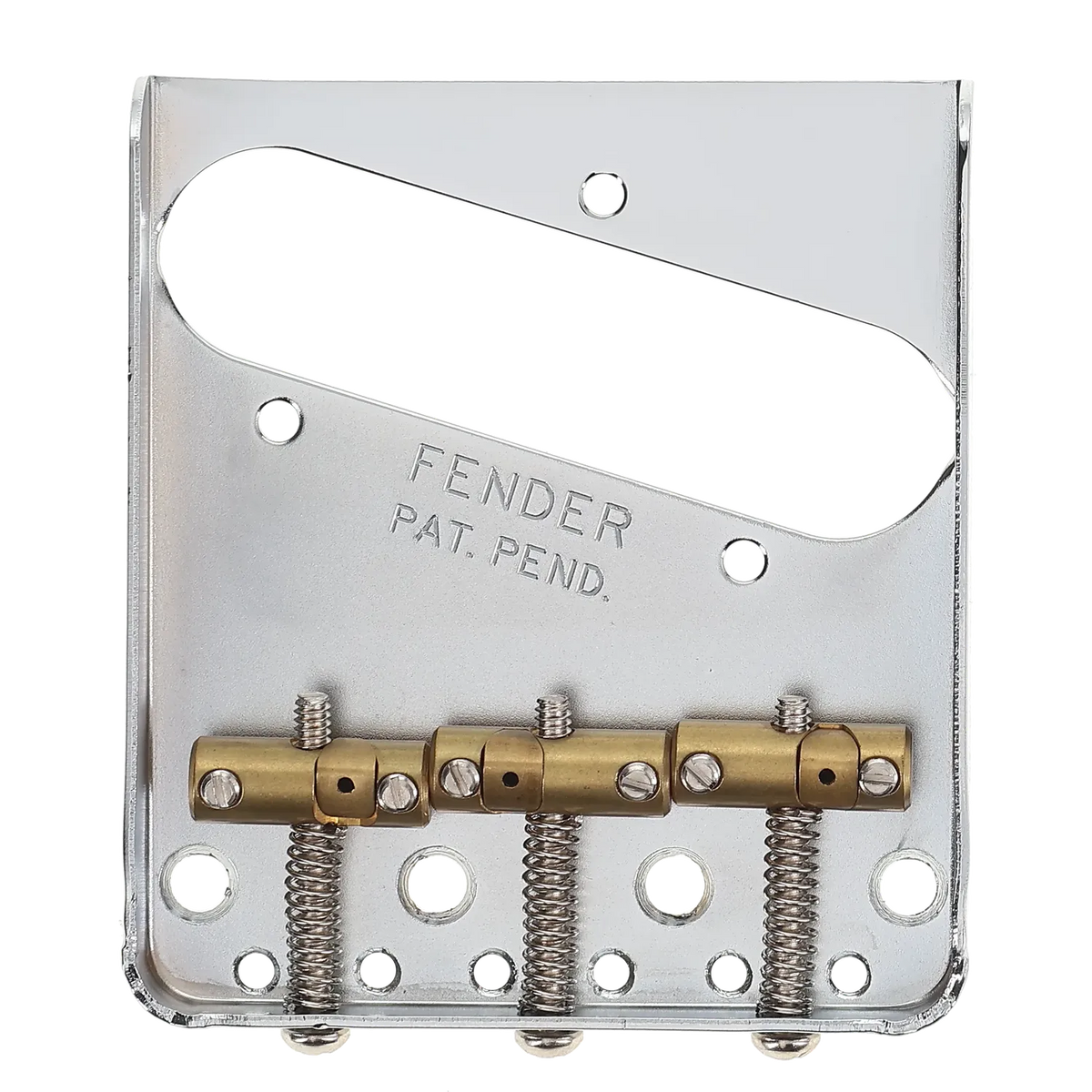

Originally featured on the American Vintage Hot Rod '52 Telecaster, this bridge combines a traditional nickel-plated steel bridge plate with three compensated brass barrel saddles. Unlike conventional three-saddle Telecaster bridges, each brass saddle features a movable section that allows for more precise individual string intonation without sacrificing the classic three-barrel design.
The movable sections accommodate the A, D, and high E strings and can be repositioned using a 0.050" hex key, while traditional Phillips-head intonation screws adjust the remaining three strings. Slotted saddle-height screws provide independent action adjustment for each saddle.
The bridge plate features a distinctive satin nickel finish with a polished front edge, complete with Fender's classic patent-pending stamp. Designed for traditional four-screw Telecaster mounting and string-through-body construction, this assembly is an excellent choice for vintage-inspired builds, restorations, and players seeking improved intonation from a classic Telecaster bridge.
Please Note: This is a genuine Fender reclaimed component. Mounting screws, string ferrules, and the 0.050" hex key required for saddle intonation adjustments are not included.
Specifications:
- Type: Fixed Hardtail
- Application: Telecaster
- Condition: Reclaimed - Like New
- Strings: 6
- Handedness: Right
- Finish: Nickel – Satin with Polished Front Edge
- Mounting Style: Vintage 4-Screw Telecaster
- Mounting Spacing: 2 9/16" – Center to Center
- String Spacing: Approx. 2 1/8" (54 mm) – E to E
- String Loading: String-Through-Body
- Bridge Material: Nickel-Plated Steel
- Saddles: 3 Compensated Brass Barrels with Movable Intonation Sections
- Included Hardware: Saddles, Intonation Screws, Springs & Saddle-Height Screws
