Precision-engineered American-made hardware, complete with mounting posts and anchors.
Manufactured in Tennessee by Advanced Plating (Advanced Music Products), the Pinnacle Tune-O-Matic Bridge offers premium construction, modern performance, and traditional styling in a complete Nashville-style bridge assembly.

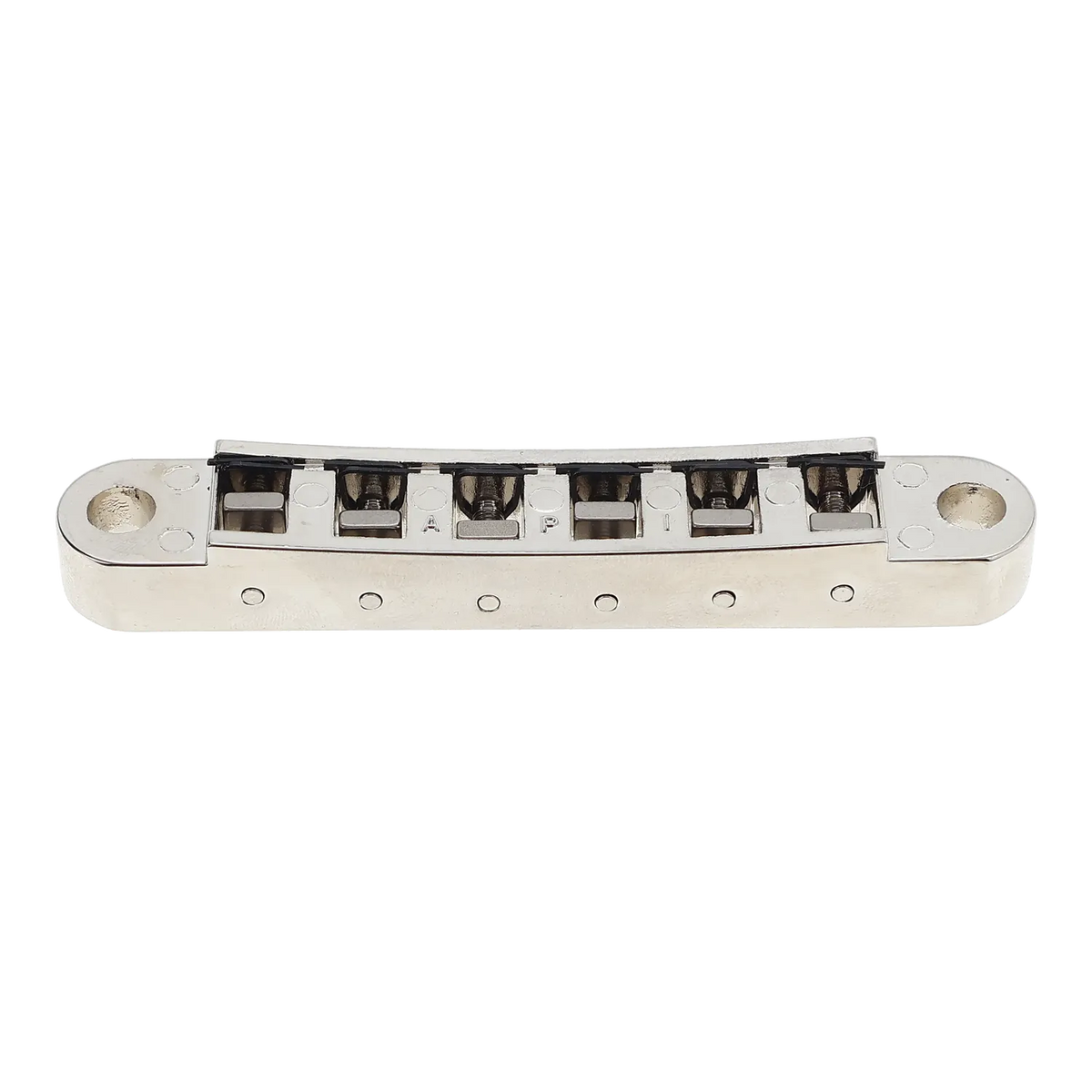

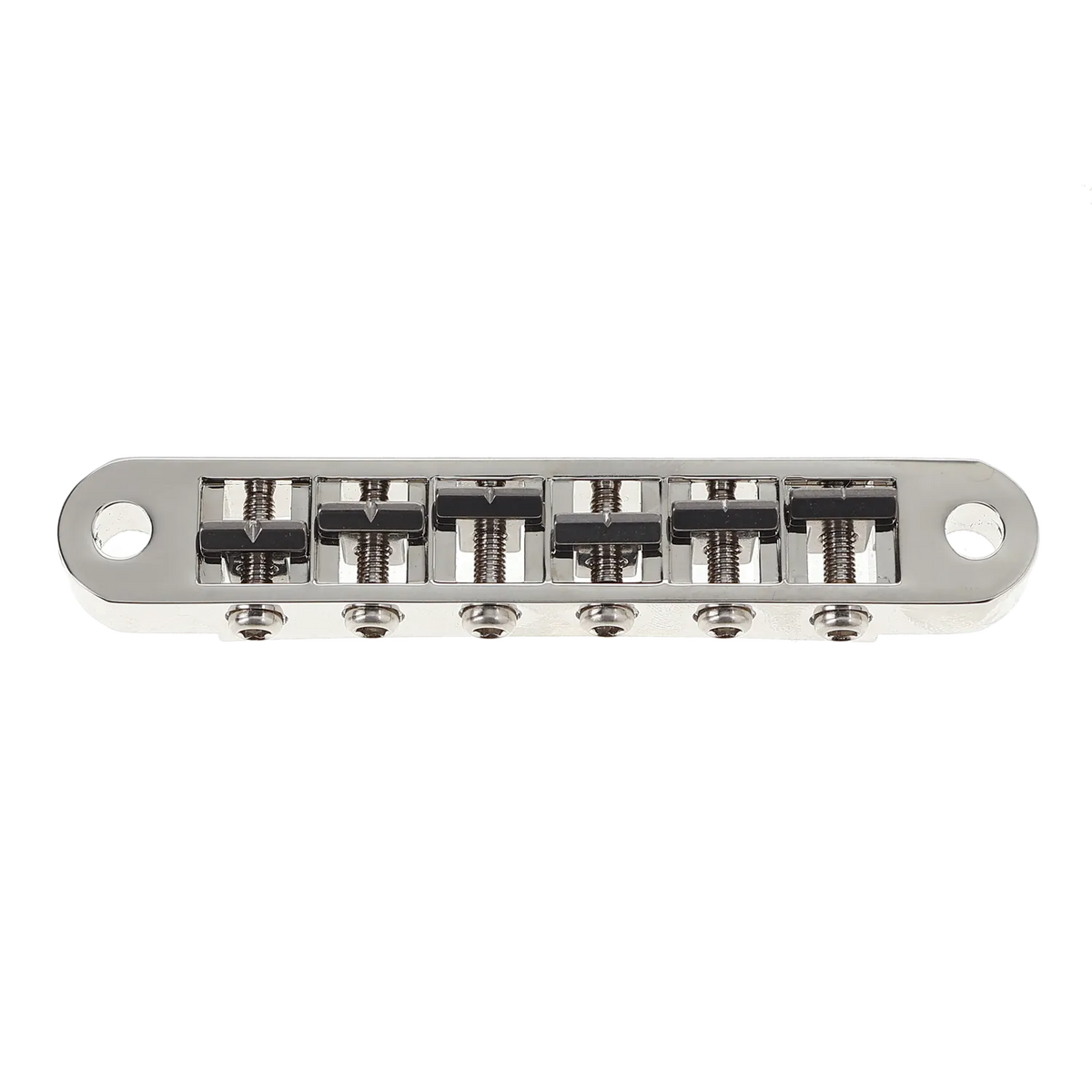

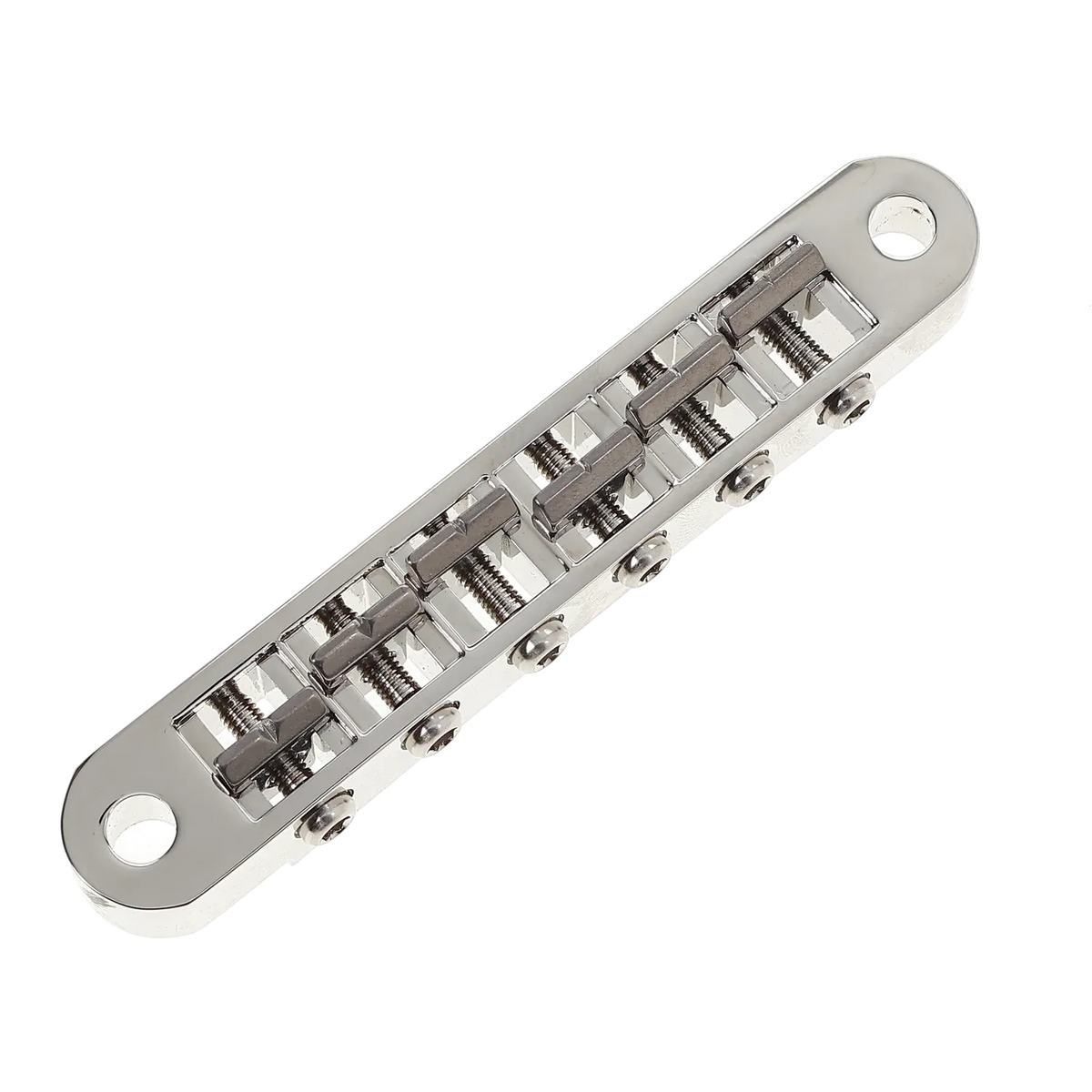

Originally sourced from the inventory of a premier American guitar manufacturer, this bridge features six individually adjustable, string-specific titanium saddles. Renowned for their exceptional strength, durability, and resistance to wear, titanium saddles provide a precise contact point for the strings, with the potential for improved note definition, articulation, and sustain compared to traditional saddle materials.
The Pinnacle features a 12" saddle radius, 2" string spacing, and precision intonation screws adjustable with a 2.5 mm hex key. Its nickel finish offers a classic appearance equally suited to restoration projects and modern custom builds.

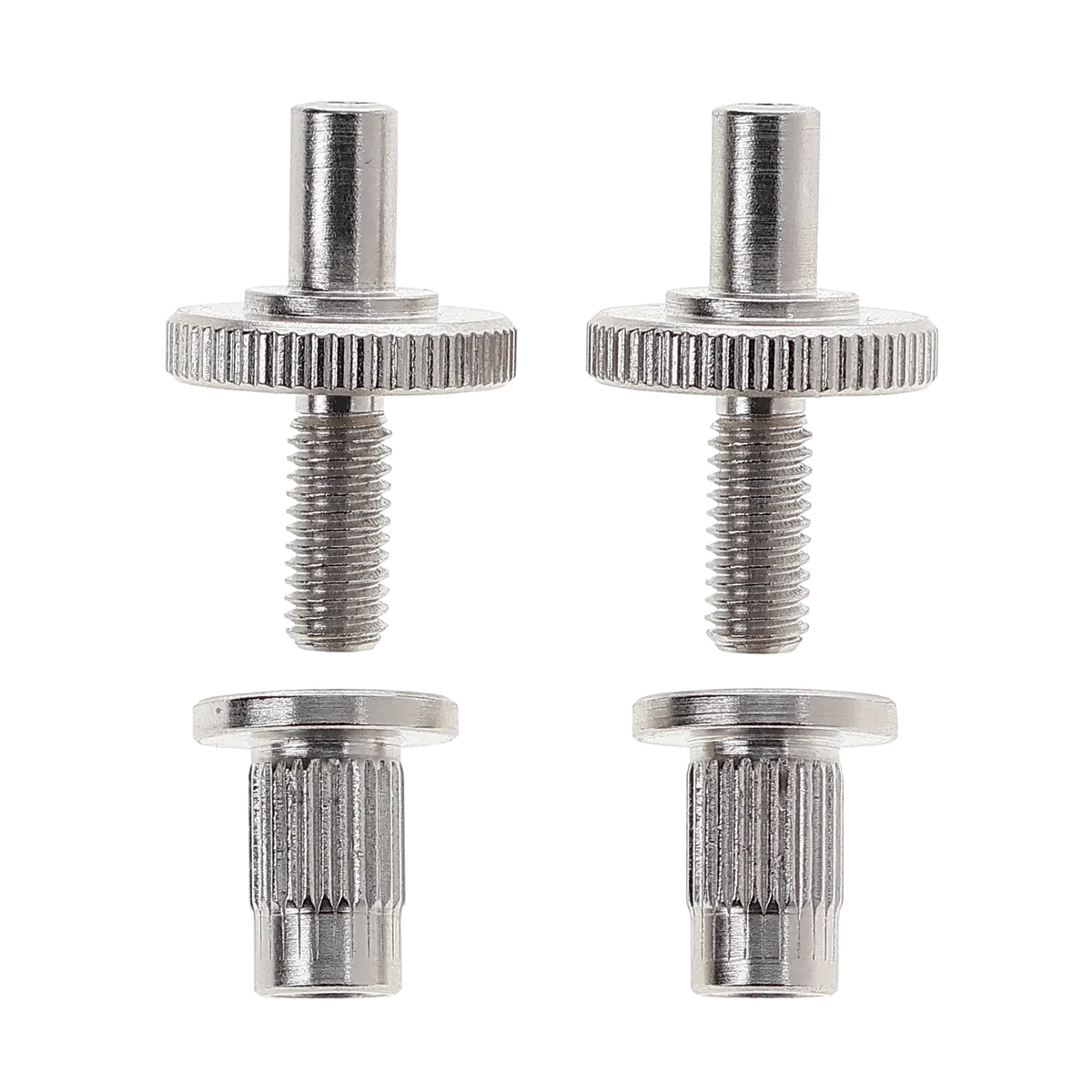

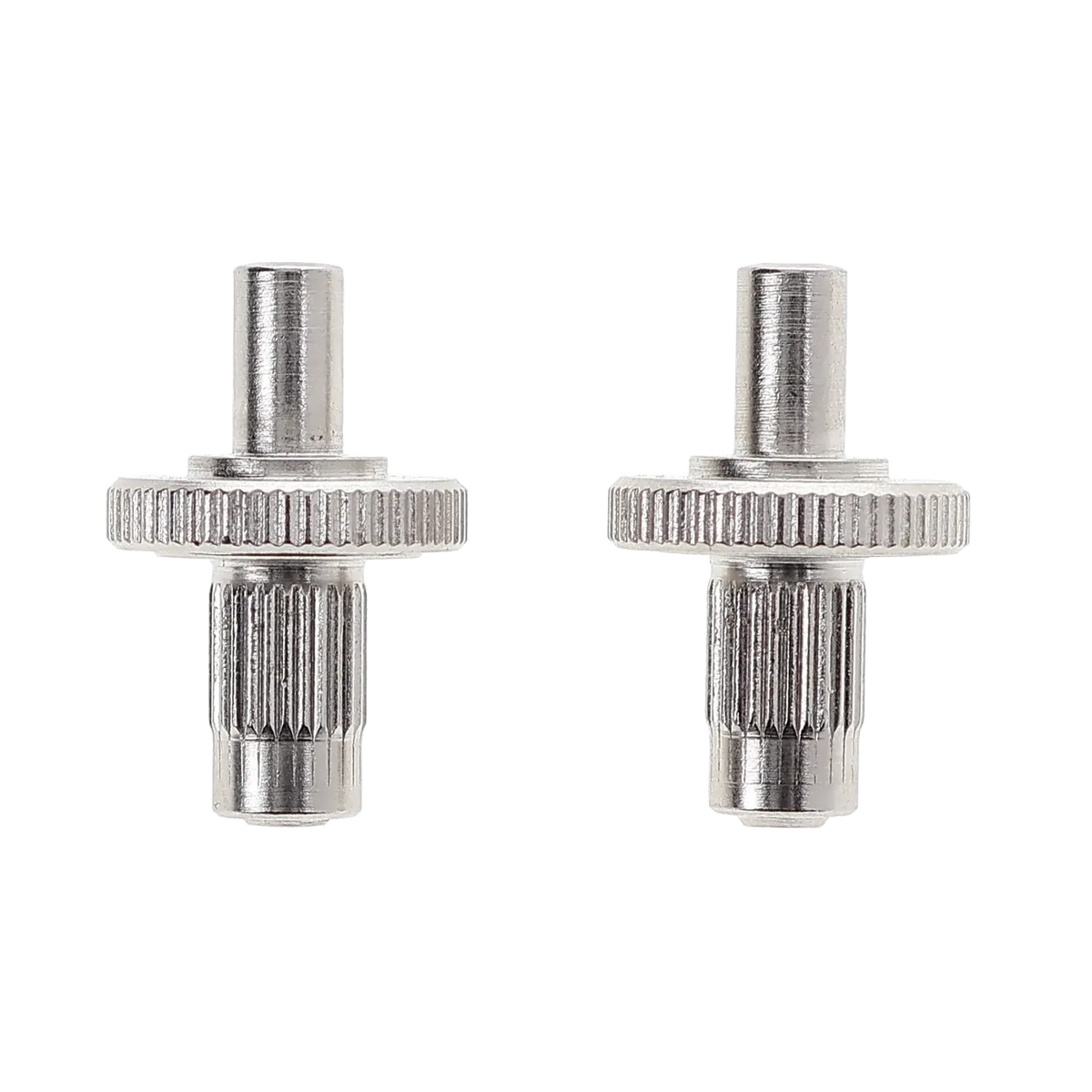

This assembly includes two mounting posts and two threaded body anchors, utilizing nominal 5 mm mounting posts with M5 × 0.8 threads and approximately 7 mm diameter anchors. The hardware follows a modern Nashville-style mounting configuration commonly found on select Gibson instruments.
Part of Mighty Mite's Reclaimed Parts collection, this premium American-made bridge assembly is an excellent choice for replacing worn hardware or completing a custom guitar build.

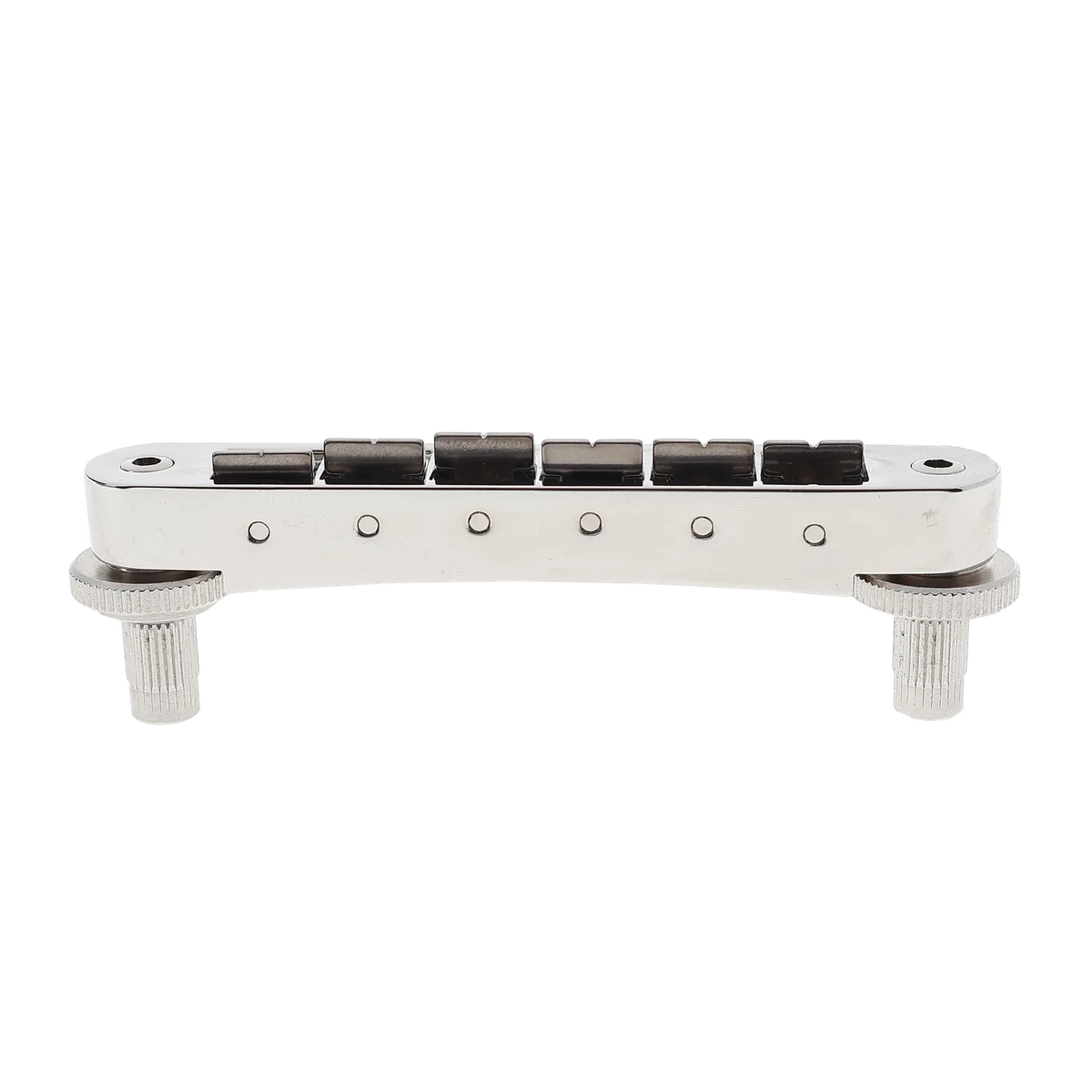

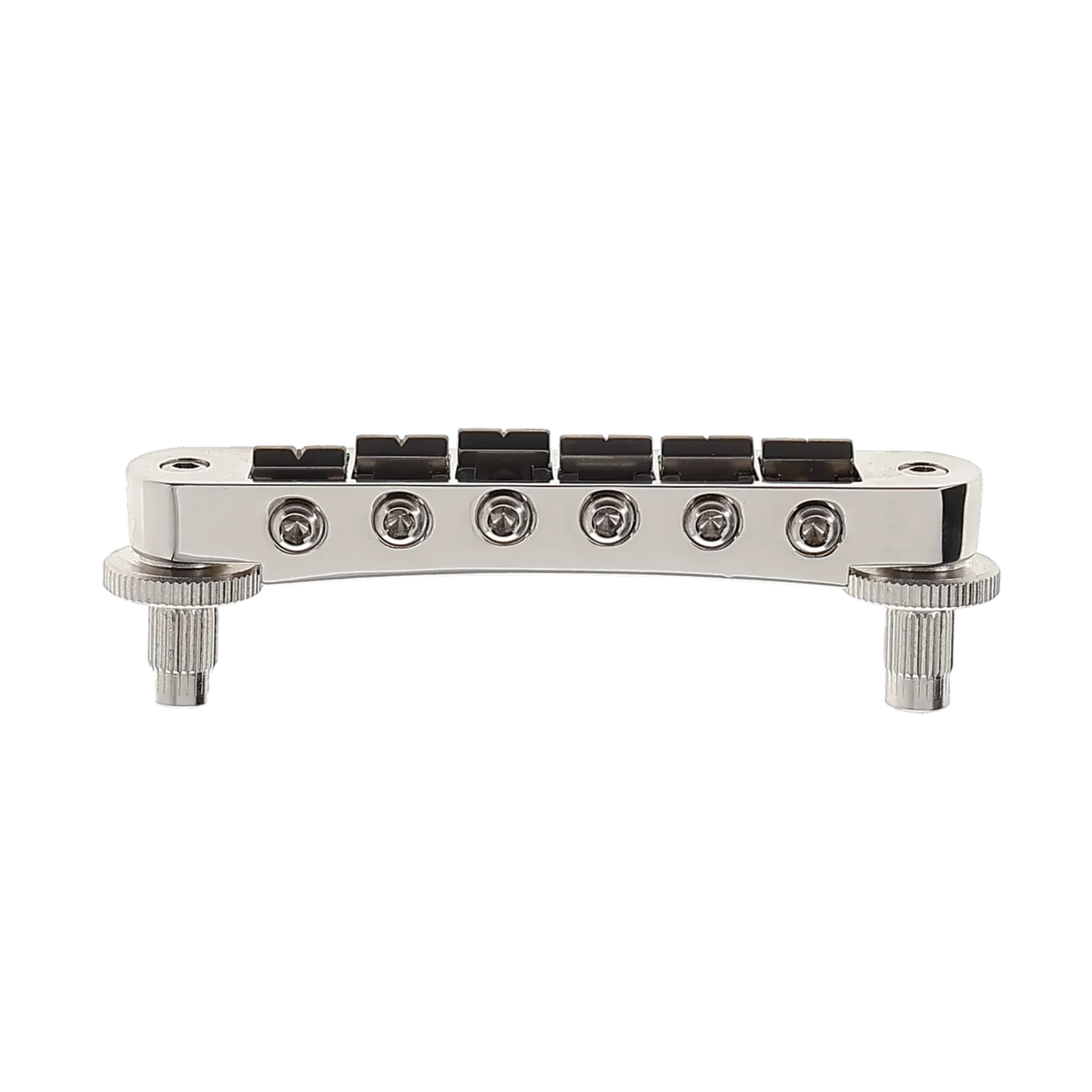

Includes one Pinnacle Tune-O-Matic Bridge, two mounting posts, and two threaded body anchors.
Specifications:
- Manufacturer: Advanced Plating
- Manufacturer Part #: AP-TIT-1200N
- Bridge Style: Nashville Tune-O-Matic
- Finish: Nicke
- Saddle Material: Titanium
- Saddle Radius: 12"
- String Spacing: 2" (50.8 mm)
- Mounting Post Spacing: 74mm
- Mounting Post Diameter: 5mm
- Mounting Post Thread: M5 × 0.8
- Anchor Outside Diameter: 7mm
- Intonation Adjustment: 2.5 mm Hex Key
- Mounting Hardware: 2 Posts & 2 Anchors Included
- Country of Origin: USA
Fitment Note: Designed for Nashville-style Tune-O-Matic installations utilizing compatible mounting dimensions. Not all Nashville-style bridges and mounting hardware are interchangeable. Please confirm post spacing, post diameter, thread specification, and anchor dimensions before installation.
